GO Velo Electric Bike
Velopower H50 Drive System
Top Speed: 25MPH (unlocked) | 20 MPH (default)
Max Range: 55 Miles
Motor: 500W (Peak 900W)
Works with Apple Find My™
UL 2271 and UL 2849 Certified
Battery: 48V 14.4 Ah with LG 21700 Cells
Weight: 65 LBS
Total Payload Capacity: 440 LBS
Rear Cargo Capacity: 120 LBS
Fits Riders: 5’0” - 6’6”
Brakes: 4-piston hydraulic, 180mm rotors
Fork: Hydraulic suspension, 60mm of travel with lockout, 15x110mm Novatec thru-axle
Drivetrain: SHIMANO 7-speed
Frame: 6061 Aluminum, integrated wiring, removable battery
Sensor: Speed
and we cover the costs.
Send it back to us.

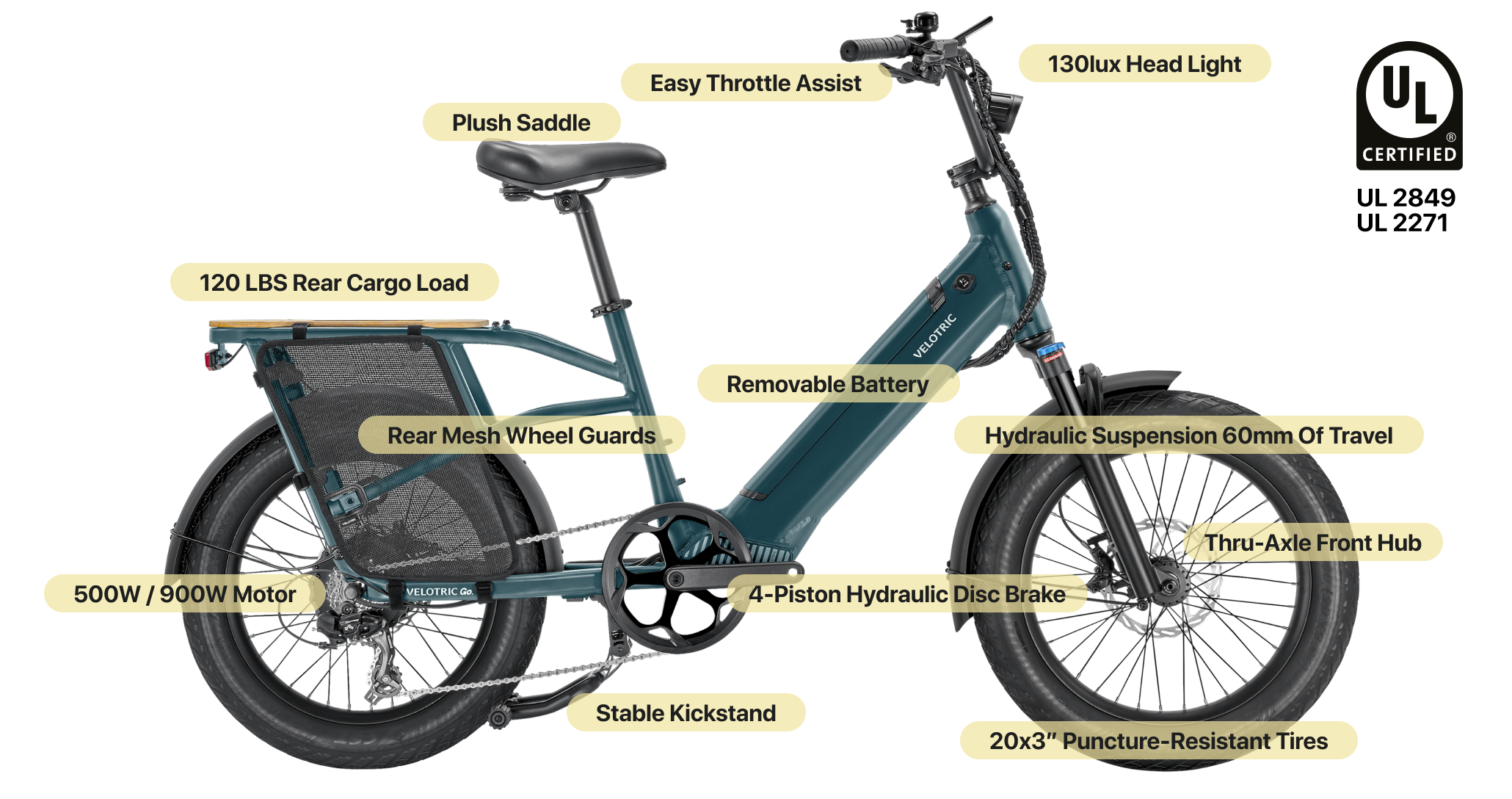

The Velotric Go 1 is small but mighty. Carry up to 440 lbs comfortably with its plush saddle, hydraulic suspension with 60 mm of travel and a frame designed with a lower center of gravity so you can carry it all with ease and comfort.
With a host of accessories, you can customize the perfect configuration for the Velotric Go 1, so that whether it’s a picnic or a weekend adventure, you and your bike are ready to go!
Powered by our proprietary Velopower H50 Drive System, ensuring the maximum efficiency and power. Ride up to 55 miles on pedal-assisted fun, up to 25 MPH (unlocked) with our 500W (peak 900W) motor.
Technical Specifications
FRAMESET |
|
| Frame | Aluminum alloy, fully integrated & lockable down tube battery, internal cable routing, front and rear fenders |
| Fork | Hydraulic suspension with 60mm travel, 15x110mm thru-axle, with Lock-out |
ELECTRONICS |
|
| Motor Hub | 500W (Peak 900W), 65Nm |
| Battery | 48V, 14.4Ah, 691.2Wh |
| Cell | LG 21700 |
| Charger | 48V, 3A, Operates on 100V-240V AC, 50-60Hz |
| Charging Time | 0-80% 4 Hours, 0-100% 6 Hours |
| Sensor | Cadence sensor |
| Display | 3.5" Backlit LCD display with speed, trip, battery, assist Level and more |
| Security | Apple Find My™ |
| USB Port | 5V 500mA, output for external devices |
| Throttle Assist | Thumb-control, removable |
| Headlight | 12V/5W/130 Lux high-output integrated LED, 130lux, Adjustable angle |
| Tail Light | Integrated with rear rack, brake highlight |
| Pedal Assist | Eco, Tour, Normal, Sport and Turbo pedal assist |
| Walk Mode | 2.9 MPH |
| Water Resistant | IPX6 |
WEIGHT& LOAD |
|
| Bike Weight | 65lbs (29.4kg) |
| Rear rack Load Capacity | 120lbs (54kg） |
| Max Bike Load | 440lbs |
SUPPORTS |
|
| Fenders | Front and rear full coverage |
| Pedals | Plastic |
| Kickstand | Aluminum alloy, dual leg, spring loaded, center mount |
SPEED & RANGE |
|
| Max Speed |
20 MPH, Class 2
|
| Max Speed (Unlock) | 25 MPH |
| Throttle Range | Up to 48 miles |
| Pedal Assist Range | Up to 55 miles |
| Hill Grade | Throttle only: 8° (14%) Pedal Assist: 10° (18%) |
DRIVETRAIN |
|
| Chainrings | 52T |
| Crankset | Aluminum alloy, 170mm |
| Cassette | 7-speed, 13-34T |
| Rear Derailleur | SHIMANO TY300-7 |
| Shift Lever | SHIMANO M315-7 |
| Chain | KMC Z7 |
BRAKE |
|
| Brake | Hydraulic Disc Brake 4-Piston |
| Rotors | 180mm front and rear |
| Brake Levers | Aluminum Alloy, with adjustable reach and power cutoff switch |
WHEEL |
|
| Rims | Double-wall Aluminum alloy, 20" disc × 36 hole |
| Front Hub | NOVATEC Aluminum alloy J-hook disc hub,15x110mm thru-axle |
| Tire | CST 20x3.0" Ebike puncture resistant tires |
COCKPIT |
|
| Handlebars | 6061 Aluminum alloy, Φ25.4mm, 660mm |
| Grips | Durable ergonomic grips |
| Stem | 6061 Aluminum alloy, 3D-forged alloy, 25.4mm clamp，50mm length |
| Saddle | VELOTRIC urban comfort ergonomic seat |
| Seat Post | 6061 Aluminum alloy, 30.4 x 400mm, quick release clamp |
